DIRECT TO GARMENT PRINTER

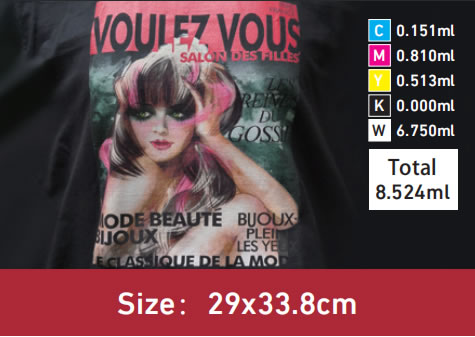

Running Cost Instruction

Main Features









- 1. Double platforms support two garments printing at same time. Dual-garment printing stations is 20% faster than single station.
- 2. Industrial Level Printing System:
- Industrial level designed head ensure 3 years+ head life.
- Build-In ink recirculation and Japanese Degassing systems ensure the continuous printing, and prevent the head from clogging, especially on white color.
- Driven by up to 110v working voltage, leads to straightly jetting droplet to get good color saturation and sharpness, and ensure the good distance between head and media for head safety.
- Cleanable and changeable head part technology extremely reduce the maintenance cost of head itself after years running.
- 3. Infrared print head protection system automatically detects the garment height to prevent the print head scratch.
- 4. Professional RIP software achieves the most economic and perfect print by different modes on different colors of cloth. It not only saves the ink but also offers more breathable and more comfortable wear.
- 5. Printing resolution as 1200dpix1200dpi. Dark shirt takes 49seconds printing with white ink background, and white shirt takes 38seconds Up to 60pcs shirts per hour as industrial level output volume.
- 6. Self-developed specific pigment ink solution not only extremely reduces the running cost, but also is compatible with wider range of fabric such as blending cotton, silicone oil cotton, mercerized cotton, etc. The color fastness reaches to grade 4 of the branding company standard.


DTG Printer Specification
ITEM | SPECIFICATION |
---|---|
Model | F2 |
Printhead Type | Drop On Demand Industrial Piezo Head |
Colore | CMYK+W |
Printing Area | Support 2x Small Platforms, 2x Middle Platforms, or 1x Big Platform |
Ink Type | Water Based Pigment Garment Ink |
Colore Fasyness | Level 4 (Appearance Of The Print After 3 Washing Eveles at 40℃) |
Speed | 60 pcs/h |
Power Supply | 220V 10A |
Installed / Package Size | LxWxH(mm)2335*2053*1430/2530*2230*1700 |
G.W./N.W | 850kg / 610kg |

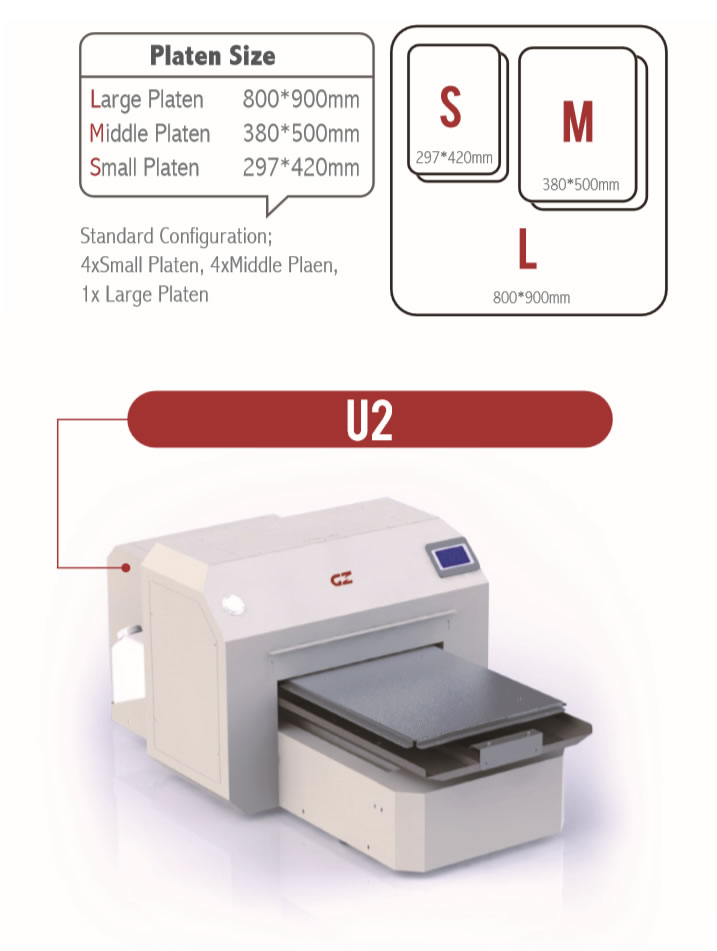

PRE-TREATMENT MACHINE Specification
ITEM | SPECIFICATION |
---|---|
Model | U2 |
Pray Area | Max. 40*50 cm |
Installed /Package Size | LxWxH(mm)1442*820*640/1540*960*860 |
G.W./N.W. | 110kg / 81kg |

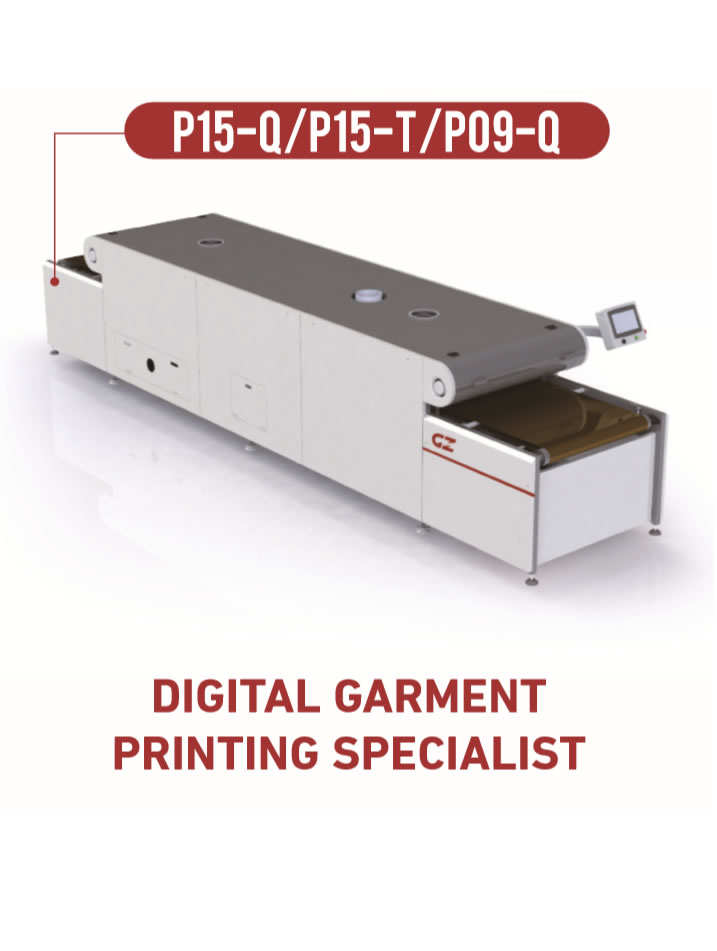

Tunnel Dryer Specification
ITEM | SPECIFICATION | |
---|---|---|
Model | P15-Q(Electric) | P15-T(Natural Gas) |
From Room Temp. To 145 Celsius | 12 Minutes | 10 Minutes |
Power Supply | Three Phases380 /415V45KW | Natural Gas 2.5kpa Gas Inlet Diameter G3/4 Motor Power: 380V, 3000W |
Power Consumption | Peak Power 45KW/H Rate Power 27KW/H |
Peak Gas Consumption 5m³/H Regular Gas Consumption 2.5-3m³/H Rate Power 3kw/H |
Belt Width | 1500mm | 1500mm |
Belt Speed | Adjustable, 3~18Mintues/Round | Adjustable, 3~18Mintues/Round |
Length Of Drying Zone | 4 Meters | 4 Meters |
Length Of Entry | 1.5 Meters | 1.5 Meters |
Length Of Exit | 1.5 Meters | 1.5 Meters |
Capacity | 100~250 pcs/H | 100~250 pcs/H |
Installed /Package Size | LxWxH(mm)7000*2160*1250 /4800*2050*1800 | LxWxH(mm)7000*2160*1250 /4800*2050*1800 |
G.W./N.W. | 1500kg / 1350kg | 1500kg / 1350kg |
ITEM | SPECIFICATION |
---|---|
Model | P09-Q(Electric) |
From Room Temp. To 145 Celsius | 10 Minutes |
Power Supply | Three Phases 380/415V 28KW |
Power Consumption | Peak Power 28KW/H Rate Power 17KW/H |
Belt Width | 900 mm |
Belt Speed | Adjustable, 3~18Mintues/Round |
Length Of Drying Zone | 3 Meters |
Length Of Entry | 1.0 Meters |
Length Of Exit | 1.0 Meters |
Capacity | 40~100pcs/H |
Installed /Package Size | LxWxH(mm)5000*1710*1250/3700*1350*1800 |
G.W./N.W. | 900kg / 810kg |
